LG The Apex of Solar Generation
LG355-360S2W-5A
The LG NeON®
R is LG’s premier module armed with the highest and most efficient energy
generation technology that LG has ever produced. LG NeON® R not only generates
the most energy from LG’s lineup but is also the most stable in all
environmental conditions.
Electrical Properties
The first chart below shows power
at Standard Test Condition (STC) which is at cell temperature of 25 °C
The chart that follows shows what few manufacturers talk about and most avoid.
ALL Solar cells at Normal Operating Cell Temperature
produce about 20% less power
|
Model |
|
LG360S2W-A5 |
LG355S2W-A5 |
|
Maximum Power (Pmax) |
[W] |
360 |
355 |
|
MPP Voltage (Vmpp) |
[V] |
37.7 |
37.4 |
|
MPP Current (Impp) |
[A] |
9.56 |
9.50 |
|
Open Circuit Voltage (Voc) |
[V] |
46.6 |
46.4 |
|
Short Circuit Current (Isc) |
[A] |
10.12 |
10.07 |
|
Module Efficiency |
[%] |
17.4 |
17.1 |
|
Operating Temperature |
[°C] |
-40 ~ +90 |
|
Maximum System Voltage |
[V] |
1,000(IEC), 1,500(UL) |
|
Maximum Series Fuse Rating |
[A] |
20 |
|
Power Tolerance |
[%] |
0 ~ +3 |
|
Model |
|
LG360S2W-A5 |
LG355S2W-A5 |
|
Maximum Power (Pmax) |
[W] |
264 |
260 |
|
MPP Voltage (Vmpp) |
[V] |
34.6 |
34.3 |
|
MPP Current (Impp) |
[A] |
7.63 |
7.58 |
|
Open Circuit Voltage (Voc) |
[V] |
43.2 |
43.0 |
|
Short Circuit Current (Isc) |
[A] |
8.14 |
8.10 |
|
* NOCT (Nominal Operating Cell Temperature): Irradiance 800 W/m2, ambient
temperature 20 °C, |
Mechanical Properties
|
Cells |
6 x 12 |
|
Cell Vendor |
LG |
|
Cell Type |
Monocrystalline / N-type |
|
Cell Dimensions |
161.7 x 161.7 mm / 6 inches |
|

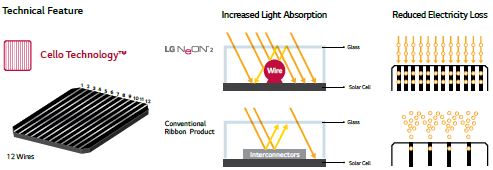

# of Busbar |
12 (Multi Wire Busbar) |
|
Dimensions (L x W x H) |
2,024 x 1,024 x 40 mm |
|
|
79.69 x 40.31 x 1.57 in |
|
Front Load |
5,400 Pa / 113 psf* |
|
Rear Load |
4,300 Pa / 90 psf* |
|
Weight |
21.7 kg / 47.84 lb |
|
Connector Type |
MC4 (MC) |
|
Junction Box |
IP68 with 3 Bypass Diodes |
|
Cables |
1,200 mm x 2 ea / 47.24 in x 2 ea |
|
Glass |
High Transmission Tempered Glass |
|
Frame |
Anodized Aluminium |
Certifications and Warranty
|
Certifications |
IEC 61215, IEC 61730-1/-2 |
|
UL 1703 |
|
IEC 61701 (Salt mist corrosion test) |
|
IEC 62716 (Ammonia corrosion test) |
|
ISO 9001 |
|
Module Fire Performance |
Type 1 (UL 1703) |
|
Fire Rating |
Class C (ULC/ORD C 1703, IEC 61730) |
|
Product Warranty |
25 Years |
|
Output Warranty of Pmax |
Linear Warranty* |
Specifications subject to
change without notice.
|
