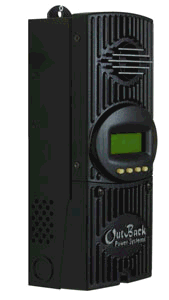

The FM60 and FM80 is a Maximum Power Point Tracking (MPPT) regulator, and is suitable for 12, 24 or 48 V batteries. With an output current of 60 amps, the MX60 is can work with higher voltage arrays - up to 140 VDC open circuit allowing the use of smaller gauge wire when the solar array is of a distance from the battery bank.

All of the MX60’s status information is displayed on the large built-in 3.1" (8 cm) backlit LCD screen. Monitoring your solar array’s performance is easy because of included data logging system that automatically records the last 64 days of system operation. OutBack’s network communication system allows your MX60 to communicate with the rest of your OutBack system, eliminating multiple product interaction problems and allowing remote monitoring via the OutBack MATE display up to 1000 feet / 300 meters away.

Features:

High Operational Efficiency
Multi-stage charging including equalization
Backlit digital display for programming and monitoring performance
Standard 2 year warranty
Can reduce wiring losses by charging a 12/24 V battery from a 48-140V PV array.
Built in Data Logging - 64 day power production history stored in display
MPPT delivers more power from a solar array (up to 25%)

Specifications

Nominal Battery Voltages 12, 24, 32, 36, 48, 54 or 60 VDC (Single model - selectable via field programming)

Output Current 60 amps for the FM60 and 80A for the FM80 maximum with adjustable current limit for smaller systems

Maximum Solar Array Size 12 VDC systems 800 Watts / 24 VDC systems 1600 Watts / 48 VDC systems 3200 Watts

PV Open Circuit Voltage (VOC) 150 VDC absolute maximum coldest conditions / 140 VDC start-up and operating maximum

Standby Power Consumption Less than 1 Watt

Charging Regulation Five Stages: Bulk, Absorption, Float, Silent and Equalization

Voltage Regulation Set points 10 to 80 VDC user adjustable with password protection

Equalization Voltage Up to 5.0 VDC above Absorb Set point Adjustable Timer - Automatic Termination when completed

Battery Temperature Compensation Automatic with optional RTS installed / 5.0 mV per °C per 2V battery cell

Voltage Step-Down Capability Can charge a lower voltage battery from a higher voltage PV array

Power Conversion Efficiency Typical 98% at 60 amps with a 48 V battery and nominal 48 V solar array

Status Display 3.1" (8 cm) backlit LCD screen with 4 lines with 80 alphanumeric characters total

Remote Interface Proprietary network system using RJ 45 Modular Connectors with CAT 5e Cable (8 wires)

Data Logging Last 64 days of operation - amp hours, watt hours and time in float for each day along with total accumulated amp hours, kW hours of production

Hydro / Wind Turbine Applications Consult factory for approved turbines

Positive Ground Applications Requires two pole breakers for switching both positive and negative conductors on both solar array and battery connections (HUB-4 and HUB-10 are not recommended for use in positive ground applications) Operating Temperature Range Minimum -40° to maximum 60° C (Power capacity of the controller is derated when above 25° C)

Environmental Rating Indoor Type 1

Conduit Knockouts Two ½" and ¾" on the back; One ¾" and 1" on each side; Two ¾" and 1" on the bottom

Warranty Standard 2 year / Optional 5 year

Weight Unit 11.6 lbs (5.3 kg)

Shipping Weight 14 lbs (6.4 kg)

Dimensions (H x W x L) Unit 13.5 x 5.75 x 4" (40 x 14 x 10 cm)

Shipping 18 x 11 x 8" (46 x 30 x 20 cm)

Options Remote Temperature Sensor (RTS), HUB and MATE
