Outback Inverters

OutBack inverters feature modularity so systems could be stacked in many configurations and easily expanded to build systems up to 36 kW of total power.

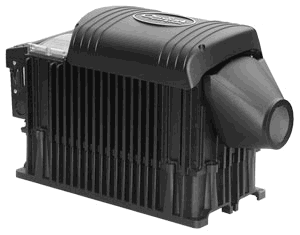

The flagship Outback FX Series Weather-resistant uses a sealed chassis that can operate in the harshest environmental conditions such as high humidity and corrosive salt air.

Two year warranty.

Features:

Smaller design takes less wall space
Fully sealed (FX and GTFX models) or bug-proof (VFX and GVFX) Grid tie compatible without additional accessories
True pure sine wave output instead of 34 steps per cycle offers lower harmonic distortion
Better able to start large motor loads
Higher efficiency, especially at higher power loads
Built-in generator start software
Designed to operate in the harshest environmental conditions such as high temperatures, humidity or corrosive salt air.
Field serviceable with end user board swaps
Stackable in series/parallel for 120/240 VAC and 3 phase, up to 36 kW
Standard 5 year warranty (extended 10 year warranty available)

In 2004 OutBack offered fully sealed models in both 24 and 48 V, with 500 watts more power than the original FX series. These are ideal for remote sites, humid areas or in mobile applications such as boats or RVs. With an all-aluminium chassis, conformal coated circuit boards and a gasketed design, the inverter is fully protected from some of the one of the major causes of inverter failure: corrosion and insects.

The FXR series is designed to survive in environments that would normally destroy other inverter/chargers. Protection for internal components is provided by our die-cast aluminium chassis with a powder coated finish to prevent corrosion. Internal and external cooling fins allow for passive heat transfer, enabling peak operating efficiencies as high as 93% and looking cool while doing it.

Water and small particles are kept out through the generous use of gaskets and 0-ring seals on all seams and openings. A protective conformal coating on all circuit boards provides the final line of defence against corrosion.

The now standard externally mounted “TURBO” cooling system improves performance in hot conditions

The VFXR series feature higher output and exceptional dollars per watt value. They have conformal coated circuit boards, stainless vent screens and a washable foam filter on the air inlet. These models are ideal for indoor installations.

GVFX series inverters are designed for grid tie applications.
