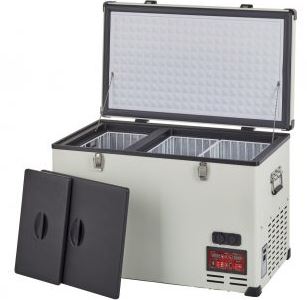

Unique DC FRIDGE/FREEZERS (-18°C)

These AC/DC powered fridge/freezers are versatile, portable and equipped with a Danfoss/Secop compressor: the world's most reliable compact DC cooling system.

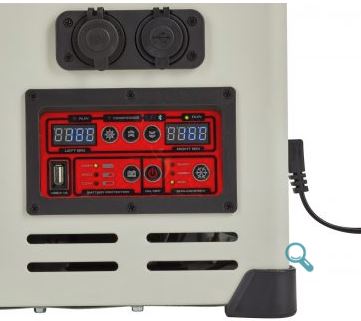

Individual compartment temperature control enables customizable fridge/freezer combinations, and its rugged construction and digital control panel make this system essential for off-grid life - can operate on the road, at home, or off-grid!

Power the fridge/freezer via deep-cell battery with a solar panel (fixed, or with Unique's portable solar panel system, model UGP100SWP see below), or with a generator at the cottage, camp and during black-outs. you can use the fridge/freezer on the road with a 12V DC connection.

These fridge freezers can be configured with each side the same or different or you can turn one side off to save power.

· Features

Danfoss/ Secop compressor – the world’s leading DC compressor
· Operates on DC or AC power (3 stages for battery protection)
· Chest-style fridge/freezer for high efficiency while using low energy consumption
· Dual compartments enable fridge/freezer combinations
· Bluetooth enabled APP for use from your iphone / android device
· Individual temperature controls for each compartment allows either compartment to be shut off to save energy
· Rugged side handles (portable)

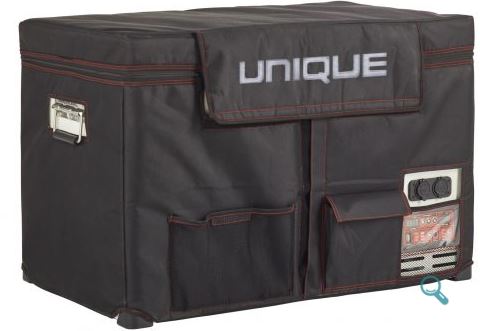

· Includes all connectors and protective insulated bag
AC/DC converter included
· USB port - 5V 2.1A
· Thermostat

MODEL	UGP-45L W	UGP-65L1	UGP-80L1	UGP-120L1 W
SIZE:	1.6 cu/ft – 45L	2.3 cu/ft – 65L	80 litres / 2.8 cu./ft.	120 litres / 4.2 cu./ft.
OPERATION:	11OV AC & 12V / 24V DC
DIMENSIONS	H 20.35” X W 14.4” X D 25.4"	H 18.5” X W 31.5” X D 18.7”	W 31.5" x D 20.9" x H 18.5"	W 27.9" x D 34" x H 20.8"
Larger Compartment 1	H 10.38” X W 8.64” X W 10.34”	H 13” X W 8.4” X D 13.9”	H 15.4” X W 8.4” X D 13.9”	L 13.9” x W 8.4” x D 23.2”
Larger Compartment 2		H 13” X W 8.4” X D 13.9”	H 15.4” X W 8.4” X D 13.9”	L 13.9” x W 8.4” x D 23.2”
Smaller Compartment	H 6.68” X W 8.69” X D 5.69”	H 4.75” X W 8.4” X D 13.9”	H 6.6” X W 8.4” X D 13.9”	L 13.9” x W 8.4” x D 14.3”
WEIGHT:	47.4 lbs / 21.5 kg	59.5 lbs / 27 kg	29 kg/63.9 lbs	35 kg/77 lbs
Connections: Car DC connector, battery gator clips and AC/DC converter included
TOTAL WATT HR DRAW:	410 Wh/24 hrs	396 Wh/24 hrs	378 Wh/24 hrs	538 Wh/24 hrs
TOTAL AMP HR DRAW:	17.42 Ah/24 hrs	14.9 Ah/24 hrs	9.3 Ah/24 hrs	18.5 Ah/24 hrs
CONSUMPTION:	170 Wh/24 hrs	33 W/Hr	33 W/hr.	19.5 W
AV. RUN CURRENT:	3.1A on 12V DC	2.7A on 12V DC	2.7 amps on 12V DC	3.3 amps on 12V DC 1.6A @24V DC
TEMPERATURE RANGE:	-22˚C/-7.6˚F to +20˚C/68˚F	-22˚C/-7.6˚F to +20˚C/68˚F	-22°Cto+20°C(in+7.6°F to+43°F	-22˚C/-7.6˚F to +20˚C/68˚F
	in ambient +1˚C/34˚F to +43˚C/109˚F

FEATURES:

Danfoss/ Secop compressor – the world’s leading DC compressor
Operates on DC or AC power (3 stages for battery protection)
Chest-style fridge/freezer for high efficiency while using low energy consumption
Multiple compartments enable fridge/freezer combinations
Bluetooth enabled APP for use from your iphone / android device
Individual temperature controls for each compartment allows either compartment to be shut off to save energy
Rugged side handles (portable)
Includes all connectors and protective insulated bag
USB ports
Thermostat
