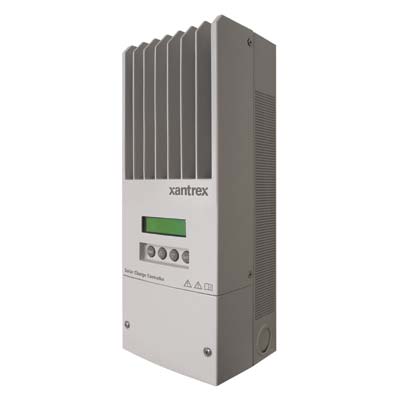

Xantrex/Schneider Electric XW MPPT 60, 80 and 100A Solar Charge Controllers
The MPPT 60 and 80 150 are photovoltaic (PV) charge controller that tracks the
maximum power point of a PV array to deliver the maximum
available current for charging batteries. When charging, the MPPT these charge
controllers regulate battery voltage and output current based on the
amount of energy available from the PV array and state of charge of the battery.
The MMPT 60 and 80 can be a part of any solar system. It is one of the
components in the Conext™ XW Series which has a wide range of
applications including grid-tie, off-grid, and backup power. It is comprised of
manageable building blocks for single- or three-phase systems
ranging from 4 kW to 36 kW.
Standard features of the XW MPPT Solar Charge Controllers include:
Expertly
designed
• Maximum power point tracking (MPPT) provides the maximum power available from
the PV array
• Large, aluminum, die-cast heat sink allows full output current up to 45 °C
without thermal de-rating
• Convection-cooled design does not require a cooling fan
• Integrated PV ground-fault protection for negative grounded arrays
• Input over-voltage and under-voltage protection, output over-current and
back-feed protection
Flexible
• Compatible with 12, 24, 36, 48, and 60 V battery systems
—— Maximum array size
-- 12 V: 900 watts
-– 24 V: 800 watts
-– 36 V: 2,700 watts
-– 48 V: 3,600 watts
-– 60 V: 4,500 watts
• Can charge a lower nominal-voltage battery from a higher nominal-voltage array
• Selectable two- or three-stage charging algorithms with manual equalization to
maximize system performance and improve battery life
• Configurable auxiliary output
• Battery Temperature Sensor (BTS) automatically provides temperature
compensated battery charging
• Network communication capability with Conext XW Inverter/Charger, System
Control
Panel (SCP), Automatic Generator Start (AGS), and other MPPT solar charge
controllers
• Remote monitoring and protocol conversion is available
• Five-year standard warranty
|
Sevice short name |
MPPT 60 150 |
MPPT 80 600 |
|
Electrical specifications |
|
|
Nominal battery voltage |
12, 24, 36, 48, 60 V |
24 and 48 V (default is 48 V) |
|
Max. PV array voltage (operating) |
140 V |
195 to 550 V |
|
Max. PV array open-circuit voltage |
150 V including temperature correction factor |
600 V including temperature correction factor |
|
Max. array short-circuit current |
60 A (48 A @ STC) |
35 A (28 A @ STC) |
|
Max. charge current |
60 A |
80 A |
|
Max. and min. wire size in conduit |
#6 AWG to #14 AWG (13.5 to 2.5 mm2) |
|
Charger regulation method |
Three-stage (bulk, absorption, float) plus manual equalization
Two-stage (bulk, absorption) plus manual equalization |
|
General specifications |
|
|
Power consumption, night time |
2.5 W |
< 1 W |
|
Enclosure material |
Indoor, ventilated, sheet metal chassis with 2.2 cm and 2.8 cm (7/8 in and 1
in) knock-outs and aluminum heat sink |
|
Product weight |
4.8 kg (10.75 lb) |
13.5 kg (29.8 lb) |
|
Shipping weight |
8 kg (17.6 lb) |
17.4 kg (38.3 lb) |
|
Product dimensions (H x W x D) |
36.8 x 14.6 x 13.8 cm (14.5 × 5.75 × 5.5 in) |
76 × 22 × 22 cm (30 × 8.625 × 8.625 in.) |
|
Shipping dimensions (H x W x D) |
48.3 x 22.9 x 35 cm (19 × 9 × 9.75 in) |
87 × 33 × 27 cm (34.3 × 13 × 10.6 in.) |
|
Device mounting |
Vertical wall mount |
|
Ambient air temperature for operation (full power) |
-20 °C to 45 °C (-4 °F to 113 °F) |
-20 °C to 65 °C (-4 °F to 149 °F) power derating above 45 °C |
|
Storage temperature range |
-40 °C to 85 °C (-40 °F to 185 °F) |
|
Operating altitude |
Sea level to 2,000 m (6,562 ft) |
|
Warranty |
Five-year standard |
|
Part number |
RNW86510301 |
865-1032 |
|
Display type |
LCD, 2 lines 16 digits |
|
|
Regulatory approvals /Safety |
CSA certified (UL 1741, CSA 107.1) and CE marked for the Low-Voltage
Directive (EN 50178) FCC and Industry Canada (Class B) and CE marked for the
EMC Directive (EN 61000-6-1, -6-3) |
CSA Certified (UL 1741, CSA 107.1) |
|
Specifications are subject to change without notice. |
|
